新產品上線-離合式手動機構

• 離合式手動機構主要應用Main application manual clutch

公司產品應用于石油，化工，醫藥，水處理，電廠，核電等場所，用于90°開啟的球閥，蝶閥，旋塞閥等閥門配套使用，我公司所 供應的手動機構還可以根據客戶使用要求對產品的速比，使用溫度，防護等級，防腐等級進行調整定制。公司立足國內，面向國 際市場，客戶主要來自中東、歐美等國外知名閥門企業。

The CHUANHU VALVE company's products are used in petroleum，chemical，pharmaceutical，water treatment，power plants，nuclear power and other places，for 90 degrees open ball valves，butterfly valves，plug valves and other valves supporting the use of the company's supply of manual clutch can also be used according to customer requirements on the product speed ratio，use temperature，protection level，anti-corrosion level. Adjust customization.The company is based on domestic and international markets，Customers mainly from the Middle East，Europe and the United States and other well-known foreign valve enterprises

• 產品主要用途 Main uses of products

本手動機構與氣動執行器裝配聯合使用，用于90°開啟的蝶閥、球閥等實現手動或氣動驅動。

The manual clutch is combined with the pneumatic actuator assembly to realize manual or pneumatic drive for butterfly valves，ball valves，etc.which are opened at90° degrees.

• 產品特點 Characteristic

1.體積小、重量輕、設計合理、樣式新穎。
2.產品系列化，輸出扭矩與氣動裝置各種閥門匹配。
3.蝸輪連接內孔有相隔90°的兩個鍵槽，以便用戶根據需要選擇裝置同閥門的相對位置。
4.提起限位拉環，旋轉偏心裝置90°限位銷自動限位，實現氣動，反之實現手動。
5.產品出廠時，裝有專用潤滑脂，與閥裝配后，整體密封防塵防水防護等級IP65，IP67，IP68可選。

1.It is small in size，light in weight and reasonable in design
2.Products are serialized and output torque is matched with pneumatic devices
3.Turbine connection holes have two keyways 90 degrees apart so that users can choose the relative position of the device with the valve according to their needs
4.Lifting the limit puling ring，rotating the eccentric device 90 degree limit pin automatic limit，to achieve pneumatic，otherwise to achieve manual
5.Product factory，equipped with special grease，and valve assembly，the overall seal，dust-proof，waterproot，protection grade IP65，IP67.IP68 optional

• 技術參數Technical parameters

• 結構圖 Structural drawing

• 主要零部件材料 Main components and materials

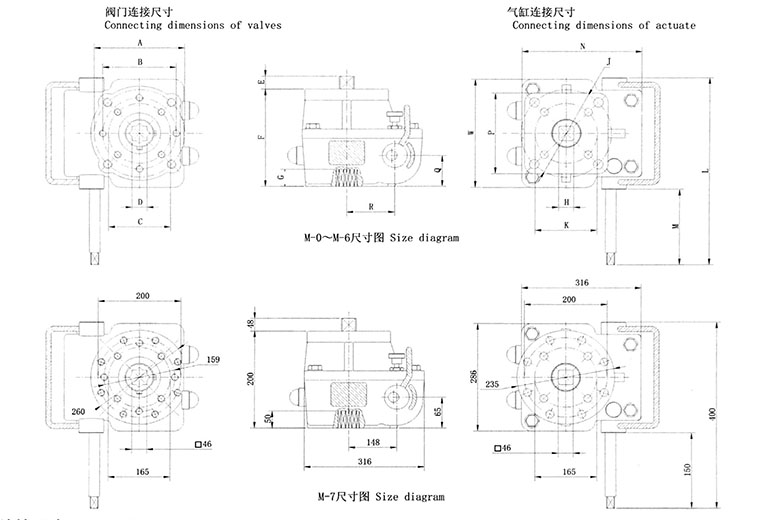

• 連接尺寸圖 connection size pic

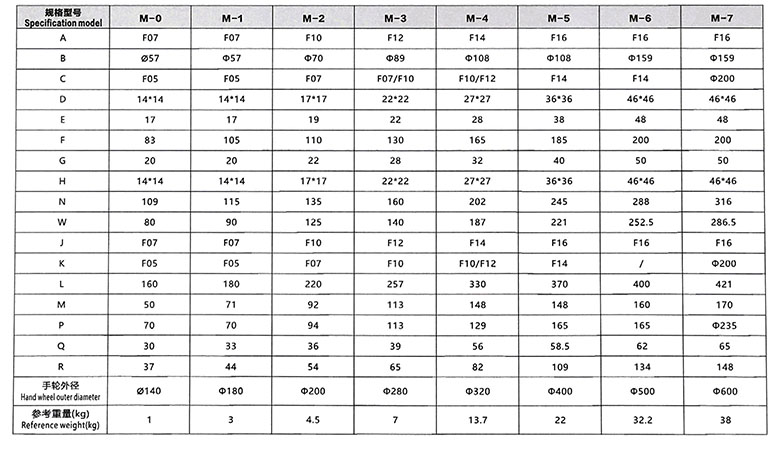

• 連接尺寸 connection size

本離合式手動機構為上海川滬閥門新研制產品，是在老產品鑄鐵手輪機構上，采用新型的鑄造鋁合金工藝，具體結構緊湊、重量輕、安裝方便等特點，并且手輪盤大、操作方便，提升了現場操作的實用性。有需要可以聯系我司021-51863046

The clutch type manual mechanism is a newly developed product of Shanghai Chuanhu valve. It is a new cast aluminum alloy process used on the old cast iron handwheel mechanism. It has the characteristics of compact structure, light weight, convenient installation, large hand wheel disc and convenient operation, which improves the practicability of field operation. If you need, please contact our company 021-51863046
