| 高平臺3片式球閥 | 高平臺3片式氣動球閥 |
標準:
設計標準:ANSI B16.34
厚度標準:ANSI B16.34
螺紋標準:ANSI B1.20.1;BS21;DIN 2999/259;ISO 228/1;JIS B0203 ISO7/1。
檢測標準:MSS SP-100;EN 12266;API 598;ISO 5208
規格：
工作溫度:-20℃ ~200℃ (-4℉~392℉)
壓力等級：DIN PN16-63/1000PSI
規格：DN8-DN100(1/4"-4")
連接方式：螺紋/承插/對焊/快裝等
材質：WCB、CF8、CF8M 、雙相鋼2205等
1. ISO 5211 直接安裝平臺
2. 防靜電裝置
3. 閥桿防脫設計
4. 硅溶膠熔模鑄造工藝
5. 鋼球有壓力平衡孔
6. 全通徑
7. 鎖緊裝置可用

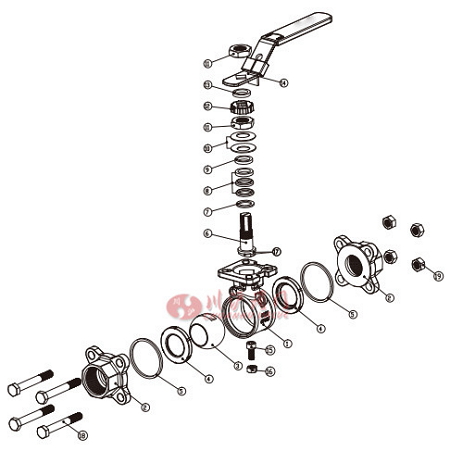

| 序號 | 名稱 | 材質表 |  |
|---|---|---|---|
| NO. | PART NAME | MATERIAL | |
| 1 | 閥體Body | A351 CF8 A351 CF8M A216WCB | |
| 2 | 閥蓋Bonnet | A351 CF8 A351 CF8M A216WCB | |
| 3 | 球體Ball | SUS304/SUS316 | |
| 4 | 閥座Seat | PTFE/RPTFE/PPUPEEK | |
| 5 | 密封線Gasket | PTFE/RPTFE | |
| 6 | 閥桿Stem | SUS304/SUS316 | |
| 7 | 減磨墊 Stem Washer | PTFE/RPTFE | |
| 8 | V型填料 V-Ring Packing | PTFE/RPTFE | |
| 9 | 壓蓋Gland | SUS304 | |
| 10 | 碟簧 Belleville Washer | SUS301 | |
| 11 | 閥桿螺母Stem Nut | SUS304 | |
| 12 | 防松蓋 Stop Lock Cap | SUS304 | |
| 13 | 塾片Washer | SUS304 | |
| 14 | 手柄Handle | SUS304 | |
| 15 | 定位螺釘Stop Bolt | SUS304 | |
| 16 | 螺母Nut | SUS304 | |
| 17 | 防靜電彈簧 Anti Static Device | SUS304 |
1.高平臺3片式內螺紋球閥1000PSI連接尺寸
 |

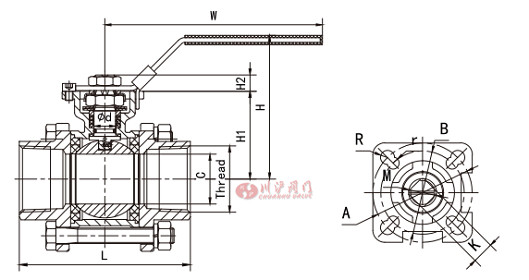

| 高平臺3片式內螺紋球閥結構圖 |
| Size | C | L | H | H1 | H2 | W | d | A | B | R | r | K | Nm | Cv | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
| 3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
| 1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
| 1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
| 1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
| 2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
| 2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
| 3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
| 4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
2.高平臺3片式焊接球閥1000PSI連接尺寸
 |

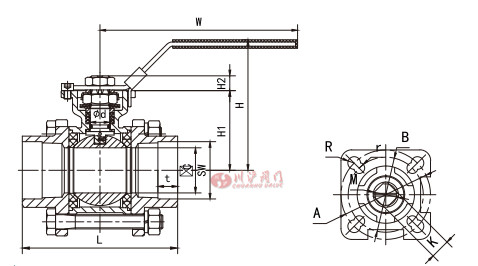

| 高平臺3片式焊接紋球閥結構圖 |
| Size | C | L | H | H1 | H2 | W | SW | t | d | A | B | R | r | K | Nm | Cv | IS05211 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 22.2 | 9.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
| 3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 27.6 | 12.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
| 1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 34.3 | 12.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
| 1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 43.1 | 12.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
| 1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 49.2 | 12.5 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
| 2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 61.7 | 16 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
| 2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 74.4 | 16 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
| 3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 90.3 | 16 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
| 4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 115.7 | 19 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
